如下為我司愛澤工業IZE_Industries本月到貨BRINKMANN相關產品,歡迎致電索取樣本資料和產品信息。

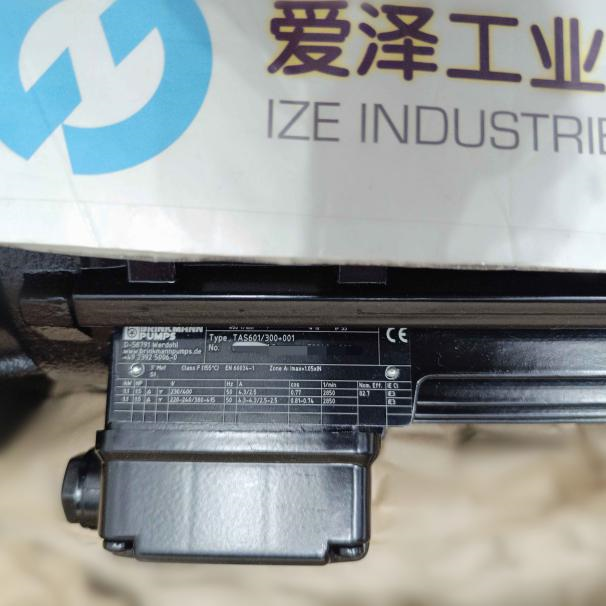

BRINKMANN泵TAS601/300+001

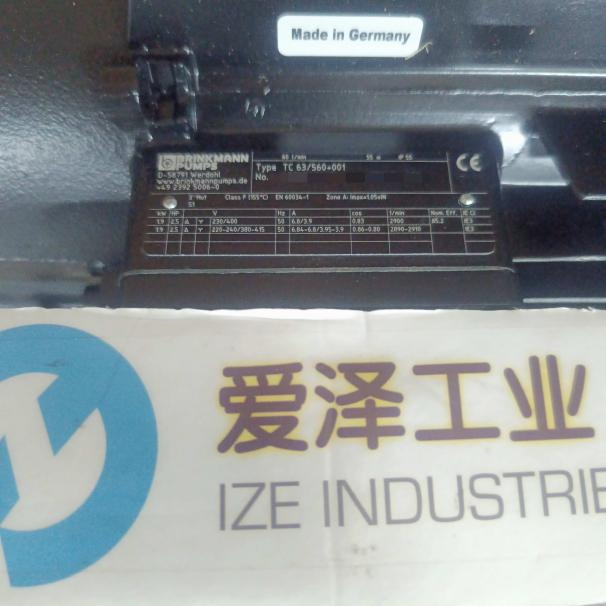

BRINKMANN泵TC63/560+001

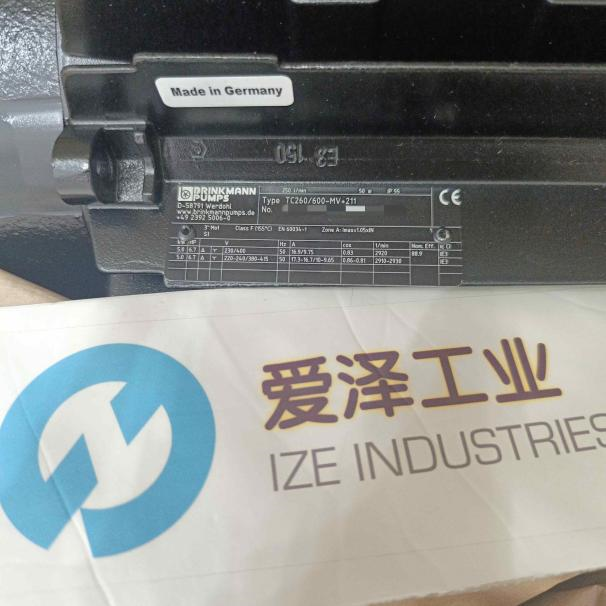

BRINKMANN泵TC260/600-MV+211

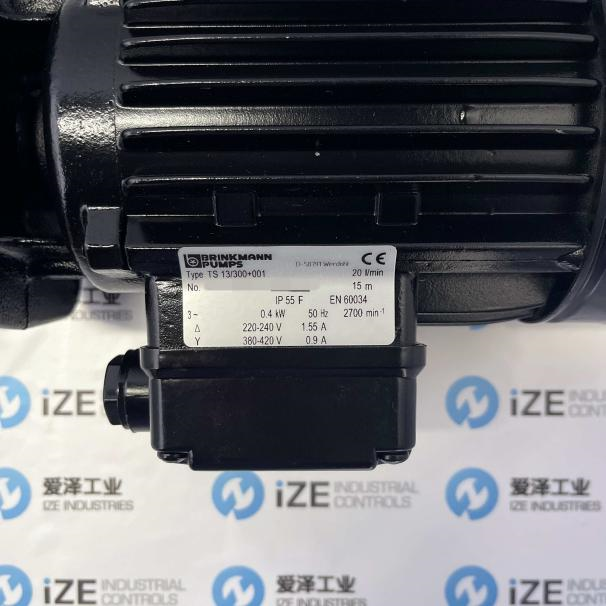

BRINKMANN泵TS13/300+001
BRINKMANN潛水泵TAS/STS系列介紹
TAS/STS系列可通過吸入側的簡單接口(例如,使用槽式濾網)連接到真空過濾器。
無密封件的吸入式潛水泵位于水箱中未過濾的冷卻液區域。
憑借其堅固的設計,吸入側的工作壓力范圍為 -0.3 bar 至 -0.5 bar。
STS 系列提供帶壓力表連接口的法蘭。
法蘭可旋轉,用于水平或垂直管道連接。
series TAS/STS make it possible to connect to vacuum filters through their simple connection on the suction side (for instance, with a slot screen).
Suction immersion pumps without seals are positioned in the area of unfiltered coolant in the tank.
With their robust design, they allow operating pressures of - 0.3 bar to - 0.5 bar on the suction side.
The STS serie offers a flange with pressure gauge connection port.
The flange can be rotated for either horizontal or vertical pipe connections.
BRINKMANN潛水泵(S)TC63系列介紹
(S)TC25...(S)TC460 型多級泵專為向內冷式刀具提供冷卻液而開發。
封閉式葉輪可提供最佳的液壓效率,同時最大限度地降低功耗。
可根據特殊應用或特定工況選擇變頻器,使泵的特性與特定工況相匹配。
可加長泵體長度。
The multistage pump models (S)TC25...(S)TC460 have been especially developed to supply internally cooled tools with coolant fluid.
Closed impellers provide optimal hydraulic efficiencies while minimizing power consumption.
A frequency converter can be supplied for special applications or for matching the pump characteristic to a specific duty point.
Extended length is possible.
BRINKMANN潛水泵(S)TC260...460系列介紹
(S)TC260 至 (S)TC460 型浸沒式泵的浸沒部件均采用不銹鋼材質。它們專為中央冷卻系統和配備內冷刀具的 CNC 加工中心而設計。
可加長泵體長度。
The immersed parts of types (S)TC260 to (S)TC460 are made of stainless steel. They are designed for use on central coolant systems and CNC machining centers with internally cooled tools.
Extended length is possible.
BRINKMANN潛水泵TS12...TS24系列介紹
TS12 至 TS24 型號適用于通過刀架或驅動主軸供應冷卻液,或配備內部冷卻刀具的數控機床。
這些泵配備外置式葉輪,以實現緊湊的高壓裝置。
TS 系列僅適用于過濾冷卻液。
為了降低泵壓,TS22 至 TS24 型號還可選擇配備 Y/YY (Dahlander) 電機的配置,以實現半速運行的 4 極電機。
Models TS12 to TS24 are suitable for CNC machine tools featuring coolant supply through the tool holder or driving spindle or equipped with internally cooled tool.
These pumps are equipped with a peripheral impeller to achieve a compact high pressure unit.
Series TS are suitable for filtered coolant only.
To reduce pump pressure, models TS22 to TS24 are also available with an optional Y/YY (Dahlander) motor configuration for 4 pole operation at half speed.
BRINKMANN潛水泵常用型號:
BRINKMANN 4LAAX0SM-F05546
BRINKMANN FFS348/50+001
BRINKMANN FFS348/80+001
BRINKMANN FH425A59-05+197
BRINKMANN FH618A59+001
BRINKMANN SB40+001
BRINKMANN SBA141-GD-Z+002
BRINKMANN SFC820/520-Z+800
BRINKMANN SFL1150/460-CM3W9MV+439
BRINKMANN SFL1350/440-W9MVXZ+509
BRINKMANN SFL1550/440-CM3+439
BRINKMANN SFL2350/470-CM3+511
BRINKMANN SGL801/450 MV+211
BRINKMANN SGL801/450-MV+211
BRINKMANN STA404/500-MVX+227
BRINKMANN STA407/850-W9X+382
BRINKMANN STC160/580+001
BRINKMANN STC160/580-2M+055
BRINKMANN STC260/460 MVX+443
BRINKMANN STC260/600-FKOX+310
BRINKMANN STC260/600-MV+314
BRINKMANN STC260/600-MVX+314
BRINKMANN STC460 / 320
BRINKMANN STC460 / 390
BRINKMANN STC460 / 870
BRINKMANN STH1409A570+001
BRINKMANN STH622A690-MV+211
BRINKMANN TA400/350+001
BRINKMANN TAS601/230-6156X+488
BRINKMANN TAS601/300+001
BRINKMANN TAS601/380-Z+002
BRINKMANN TAS601/470+001
BRINKMANN TAS601/580+001
BRINKMANN TC 40/430-550+578
BRINKMANN TC 63/270-560-X+578
BRINKMANN TC160/580+001
BRINKMANN TC260/600-MV+211
BRINKMANN TC63/270-560+578
BRINKMANN TC63/270-560-X+578
BRINKMANN TC63/270-61
BRINKMANN TC63/270-750+001
BRINKMANN TC63/270-Z+250
BRINKMANN TC63/350 65BMV+387
BRINKMANN TC63/350-X+252
BRINKMANN TC63/440+001
BRINKMANN TC63/440-560 MV+211
BRINKMANN TC63/440-560MV
BRINKMANN TC63/440-560-MV+211
BRINKMANN TC63/440-65B+352
BRINKMANN TC63/440-BXZ+531
BRINKMANN TC63/440-MVX+314
BRINKMANN TC63/560+001
BRINKMANN TC63/560-61
BRINKMANN TC63/560-MVX+314
BRINKMANN TC63/560-X+116
BRINKMANN TS13/110-6165+019
BRINKMANN TS13/150-12Z-304
BRINKMANN TS13/300+001
BRINKMANN TS21S250+001
BRINKMANN TS22/190-6165+019
BRINKMANN TS22/250-61+024
BRINKMANN TS22/250-65+003
BRINKMANN TS22/350-6165+019
BRINKMANN TS22/350-65Y+012
BRINKMANN TS22S190+001
BRINKMANN UH618A59+001
如果您需要完整的BRINKMANN的相關技術咨詢,請隨時致電愛澤工業或者訪問網站,我們將盡全力解決您的問題。
If you have any question for BRINKMANN,Please feel free to communicate with us and we will do our best to solve your problem.
